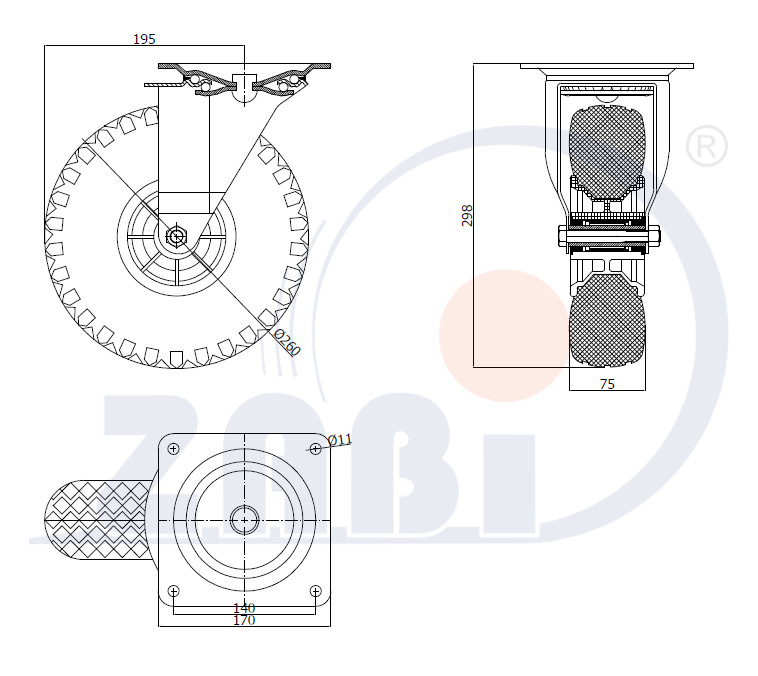

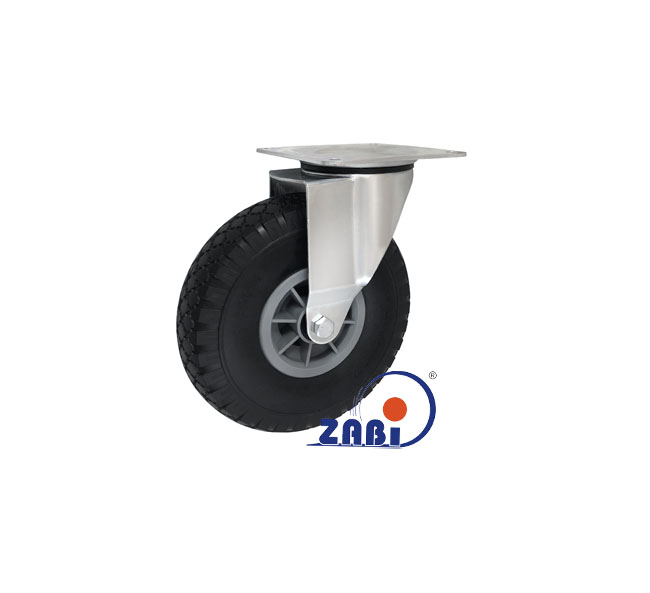

Symbol: 2602TP

Wheel diameter [mm]: 260

Total height [mm]: 300

Load capacity [kg]: 100

Set/wheel weight [kg]: 3.35

Bolt hole spacing [mm]: 140x140 ø10

Offset [mm]: 210

Bearing type: Roller bearing

Symbol						Bearing type	Bearing number
2602TP Zobacz produkt	300	100	3.35	140x140 ø10	210	Roller bearing	L-45
2602TPS Zobacz produkt	300	100	3.35	140x140 ø10	210	Roller bearing	L-45
2602MPŁ Zobacz produkt	300	100	3.90	140x140 ø10	210	Ball bearing	6004
