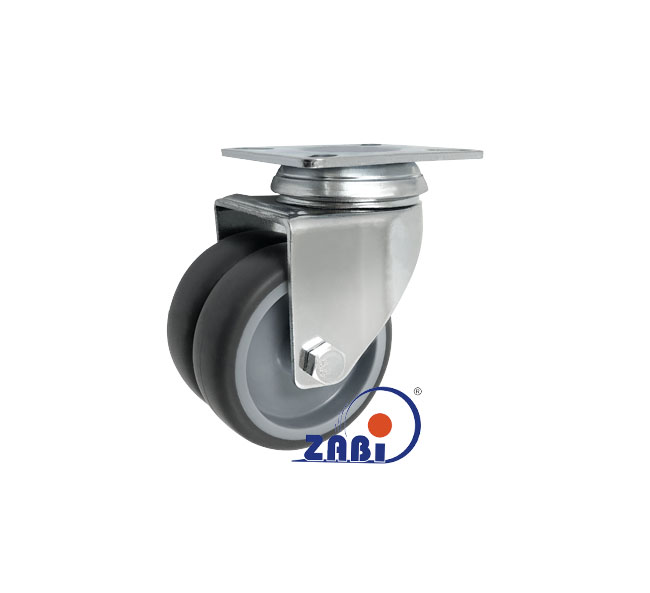

Symbol: M72T2

Wheel diameter [mm]: 75
Wheel width [mm]: 2x25
Plate dimensions [mm]: 67x77
Total height [mm]: 103
Load capacity [kg]: 100
Set/wheel weight [kg]: 0.59
Bolt hole spacing [mm]: 48x55 ø8
Offset [mm]: 72
  Bearing type: Plain bearing

Produkty podobne

Produkty dla średnicy

Symbol Bearing type Bearing number Other
M72T2 Zobacz produkt 2x25 67x77 103 100 0.59 48x55 ø8 72 Plain bearing -
M72B2 Zobacz produkt 2x26 67x77 103 100 0.56 48x55 ø8 72 Plain bearing -
M72TŁ2 Zobacz produkt 2x23 67x77 103 130 0.75 48x55 ø8 72 Ball bearing 628
