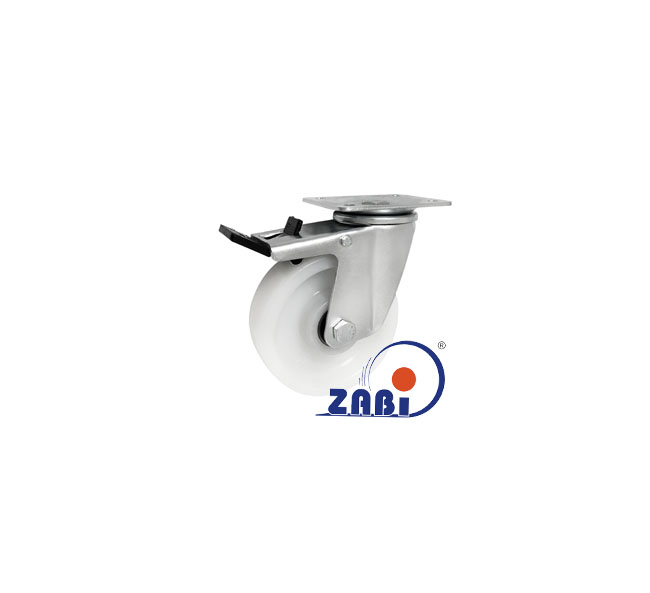

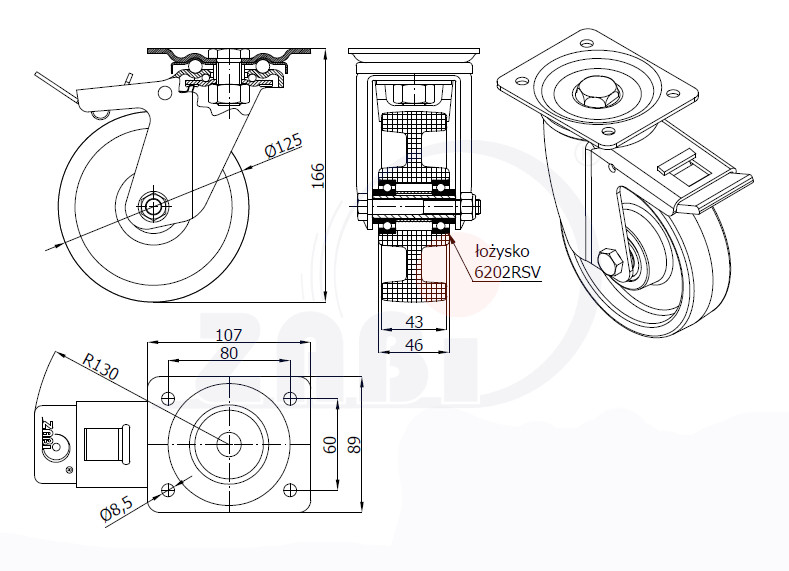

Symbol: 25BNWH

Wheel diameter [mm]: 125

Wheel width [mm]: 43

Total height [mm]: 165

Load capacity [kg]: 250

Set/wheel weight [kg]: 1.60

Bolt hole spacing [mm]: 60x80 ø8

Offset [mm]: 129

Bearing type: Ball bearing

Produkty podobne

Produkty dla średnicy

	Symbol							Bearing type	Bearing number
	25BWH Zobacz produkt	40	165	200	1.45	60x80 ø8	129	Roller bearing	L-35
	25BZWH Zobacz produkt	45	165	250	1.45	60x80 ø8	129	Roller bearing	L-35
	25BNWH Zobacz produkt	43	165	250	1.60	60x80 ø8	129	Ball bearing	6202
	25BW9H Zobacz produkt	40	165	250	1.45	60x80 ø8	129	Plain bearing	-
	25B9H Zobacz produkt	40	168	200	1.90	80x105 ø10	140	Plain bearing	-
	25BH Zobacz produkt	40	168	200	1.75	80x105 ø10	140	Roller bearing	L-35
	25BNH Zobacz produkt	43	168	250	1.95	80x105 ø10	140	Ball bearing	6202
	25BZH Zobacz produkt	45	168	250	1.45	80x105 ø10	140	Roller bearing	L-35
	25MBNH Zobacz produkt	43	158	150	1.22	50-60x80 ø10	137	Ball bearing	6202
	25MBH Zobacz produkt	40	158	150	1.06	50-60x80 ø10	137	Roller bearing	L-35
	25MB9H Zobacz produkt	40	158	150	1.00	50-60x80 ø10	137	Plain bearing	-
