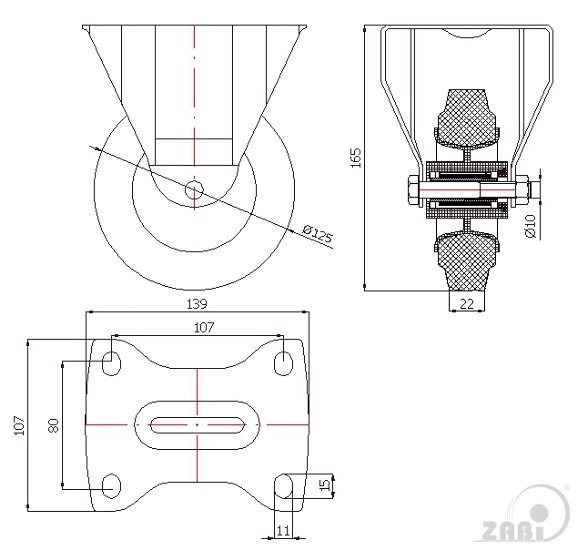

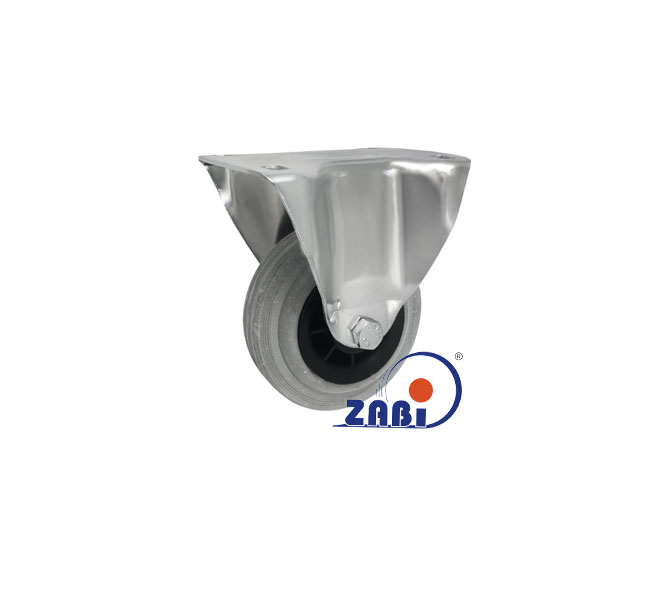

Symbol: 23TS

Wheel diameter [mm]: 125
Wheel width [mm]: 22
Total height [mm]: 168
Load capacity [kg]: 70
Set/wheel weight [kg]: 1.03
Bolt hole spacing [mm]: 80x105 ø10
  Bearing type: Roller bearing

Produkty podobne

Produkty dla średnicy

Symbol Bearing type Bearing number
23MT9 Zobacz produkt 22 158 70 0.86 50-60x80 ø10 Plain bearing -
23MTS Zobacz produkt 22 158 70 0.86 50-60x80 ø10 Roller bearing L-35
23MTS9 Zobacz produkt 22 158 70 0.86 50-60x80 ø10 Plain bearing -
23MT Zobacz produkt 22 158 70 0.86 50-60x80 ø10 Roller bearing L-35
23TS9 Zobacz produkt 22 168 70 1.03 80x105 ø10 Plain bearing -
23TS Zobacz produkt 22 168 70 1.03 80x105 ø10 Roller bearing L-35
23T9 Zobacz produkt 22 168 70 1.03 80x105 ø10 Plain bearing -
23T Zobacz produkt 22 168 70 1.03 80x105 ø10 Roller bearing L-35
